PCAN-USB Adapter
PCAN-USB Adapter CAN-USB Adapter IPEH-002021
Alternative Views:

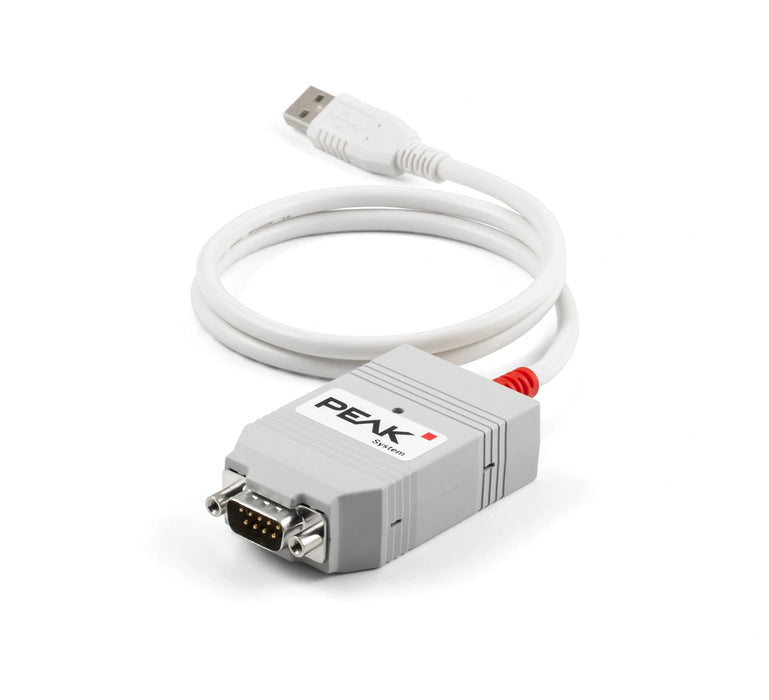

PCAN-USB Adapter (standard), IPEH-002021
Our Price: $225.00

Availability: Orders placed by 3pm Pacific usually ship same day.

Description Technical Specs Downloads

The PCAN-USB Adapter made by PEAK-System Technik connects any laptop computer or PC with a USB connector to a CAN fieldbus. This USB-CAN interface with the included CAN monitor software allows a user to look at CAN network messages, send out CAN data and record bus traffic. This product is also available with galvanic isolation of up to 500V between the CAN signals and the host-PC under part # IPEH-002022.

The CAN bus signals are routed to a 9-pin SUB-D plug and an integrated LED shows the operating state of the PCAN-USB Adapter.

The PCAN-USB package includes device drivers for Windows® 8/ 7/Vista (32/64-bit), the PCAN-Basic API, and the PCAN-View CAN monitor software. Linux drivers are also available. For customers needing more sophisticated CAN Analyzing software we have the PCAN-Explorer V5 available.

  • Interface in compact plastic casing
  • CAN transfer rates up to 1 Mbit/s
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus connection via D-Sub, 9-pin (to CiA® 102)
  • NXP SJA1000 CAN controller, 16 MHz clock frequenc
  • 82C251 CAN transceiver
  • Hardware can be reset via software
  • 5-Volts supply to the CAN connection can be connected through a solder jumper, e.g. for external transceiver
  • Voltage supply through USB bus
  • USB connection (USB 1.1, compatible with USB 2.0 and USB 3.0)
  • Optional galvanic isolation on the CAN connection up to 500 V (see IPEH-002022)
